Service and technical support
Design Bureau "Fizelektronpribor" LLC provides delivery, installation and supervising installation of bulk materials moisture meters as well as customization of their design for specific production conditions.
SOFTWARE
The program for moisture meter control by PC allows obtaining measured values and assigning the moisture meter settings:
- to change the moisture meter network address;
- to set moisture range for current output;
- to work with calibration tables and moisture meter configuration files;
- to display measured moisture, permittivity and temperature.
SWPro_ver3_9Eng.zip
Version: 3.9 (14.01.2025)
System requirements: PC running Windows 7/8, Windows 10, Windows XP.
Connection: RS232 port / RS485 / USB with converter.
Technical documentation
This section contains the documentation necessary for the moisture meter installation.
Setup Manual And Software Description_fizepr-sw100.pdf Setup manual and Software description FIZEPR-SW100
Catalogue 1_v.3.10_ Eng.pdf (Moisture meters FIZEPR-SW100 and microwave barrier for level SIUR-03V2 for bulk and paste-like materials)
Installing a moisture meter
There are two possible options for making the probe.

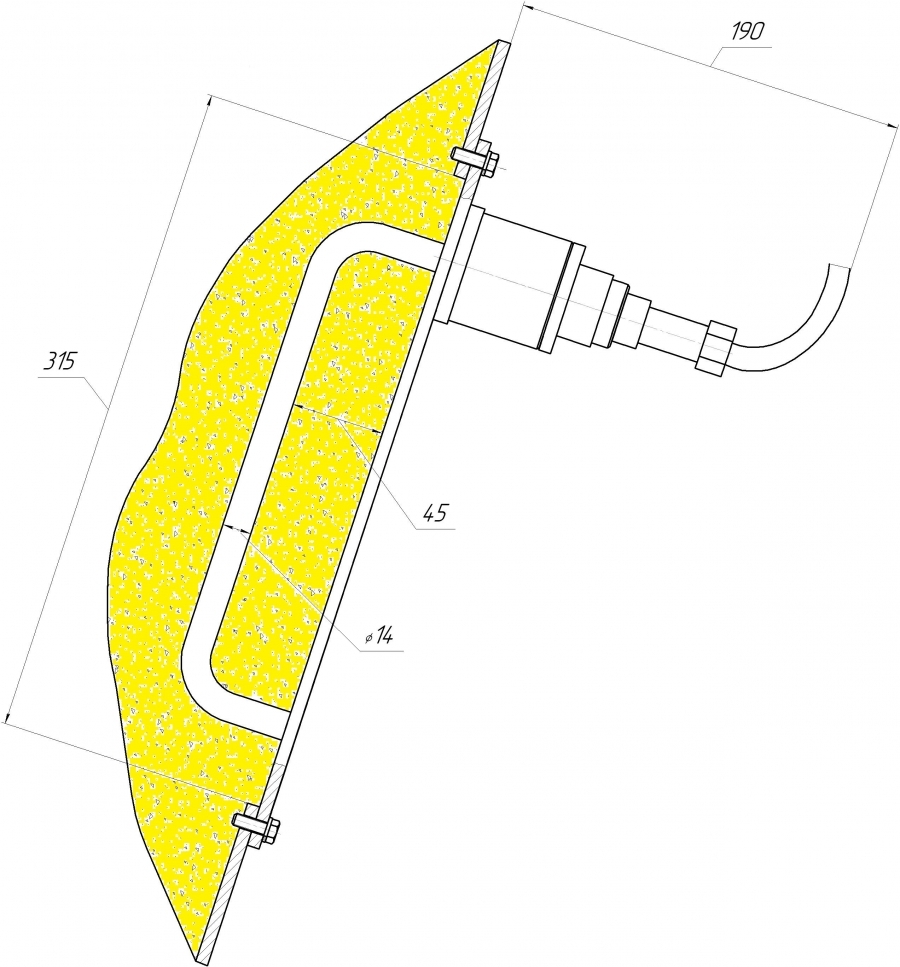

The first option: the probe rod has a U-shape and both its ends are fixed to one metal surface in such a way that the probe is in the flow of the measured material.
FIZEPR-SW100.10.6 (10.21)

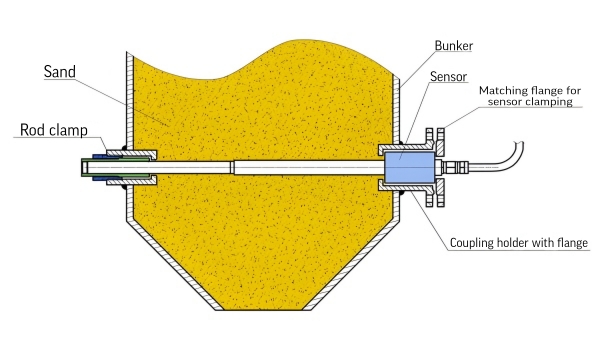

The second option: the probe rod is made in the form of a straight rod, the ends of which are fixed on the opposite walls of the bunker.
Крепление в бункере датчика FIZEPR-SW100.10.4x
Warranty and maintenance
The warranty period for the moisture meter is 24 months.
KB "Fizelektronpribor" performs warranty and post-warranty repairs of equipment.
