Moisture meter for
bulk materials
FIZEPR-SW100.10

Get a quote

+7 (846) 244-89-51

Request callback

Tel/Fax: +7 (846) 925-63-53
info@fizepr.com

Service and technical support

Design Bureau "Fizelektronpribor" LLC provides delivery, installation and supervising installation of bulk materials moisture meters as well as customization of their design for specific production conditions.

SOFTWARE

The program for moisture meter control by PC allows obtaining measured values ​​and assigning the moisture meter settings:

Swpro_ver2_8.zip

Version: 2.8 (11.04.2017)

System requirements: PC running Windows 7/8, Windows Vista, Windows XP.

Connection: RS232 port / RS485 / USB with converter.

Technical documentation

This section contains the documentation necessary for the moisture meter installation.

Katalog 2017.pdf

 Manual Fizepr-sw100_10-30.pdf

Holes making

Cutout location in the measuring hopper

Panel board location on the wall of weighing hopper. Plane view

Moisture meter sensor on the conveyor with sand

Flow conditioner on the conveyor belt

Moisture meter connection diagram

Moisture meter probe mounting on the hopper with sand

Sensor mounting in the conveyor screw. Option 1.

Sensor mounting in the conveyor screw. Option 2.

Moisture meter installation

Two versions of probe design are possible.

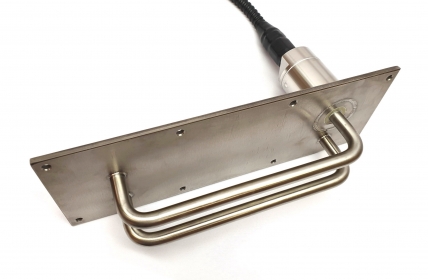

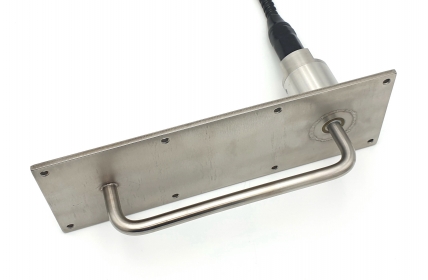

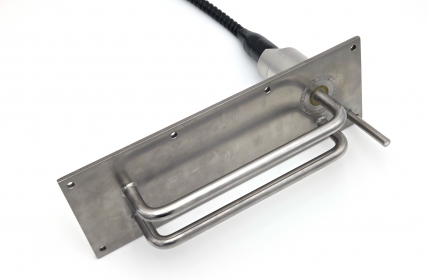

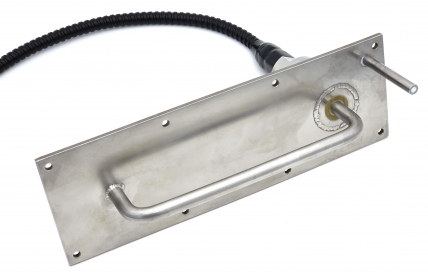

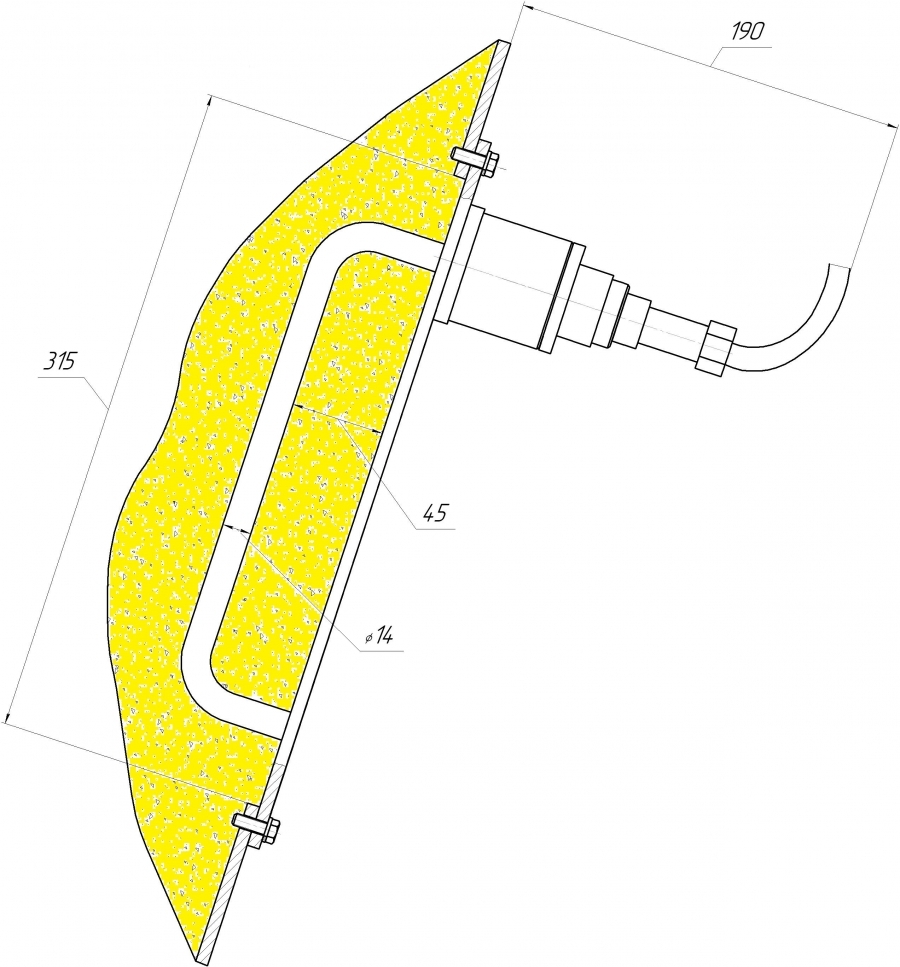

First version: the probe stick is flat-topped with both ends fixed on a metal surface in such a way that the probe is in a flow of measuring material.

П-образный зонд влагомера

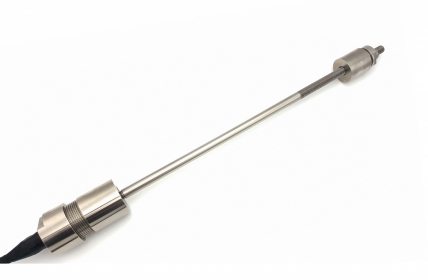

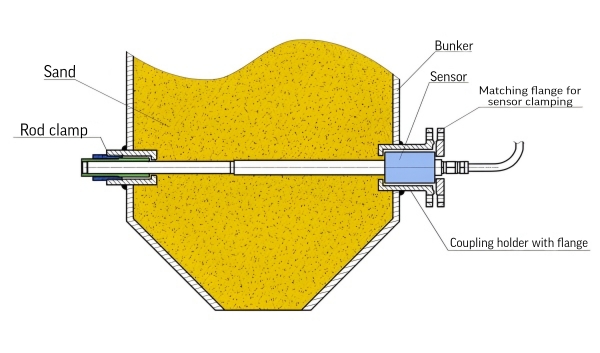

Second version: the probe stick is made as a straight rod with the ends mounted on the opposite walls of the hopper.

Зонд в виде прямого стержня

Warranty and maintenance

Moisture meter warranty period is 24 months.

Design Bureau "Fizelektronpribor" performs warranty and post-warranty repair of equipment.
